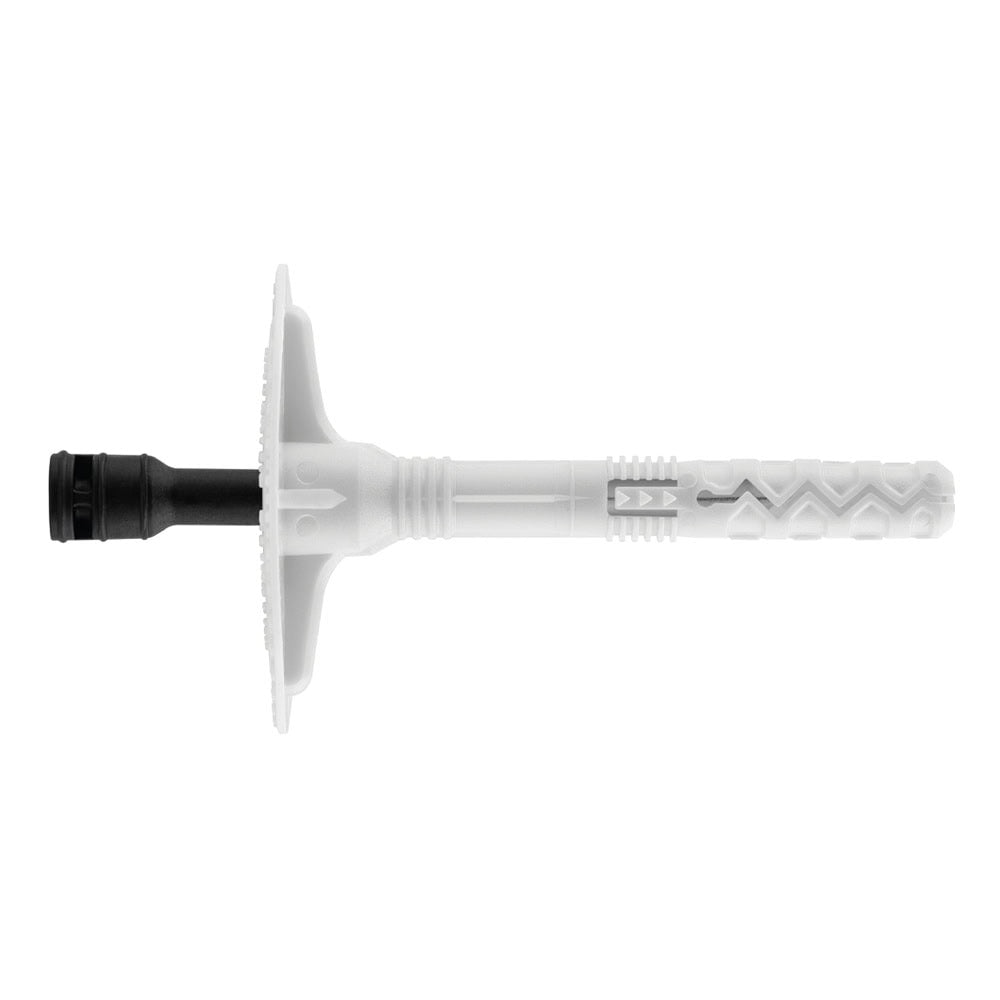

Insulation board plug plastic nail 10mm – 70mm insulation (each)

"10mm Plastic Screw Fixing is a high-strength, CE-certified insulation fixing designed for quick and reliable installation. With a short anchoring zone and reinforced materials, it offers excellent performance in a wide range of substrates. The 10mm diameter and specially designed pin ensure faster installation, reduced drill wear, and high pull-out resistance—even in tough materials like concrete.
Intended Uses
10mm Plastic Screw Fixing is designed for the mechanical fixing of thermal insulation materials, including polystyrene and mineral wool. It’s suitable for use in concrete, solid brick, and other masonry substrates. Whether used in external wall insulation systems or other construction applications, it provides a secure and efficient fixing solution.
Sizing and Quantities

Application
10mm Plastic Screw Fixing is pre-assembled for ease of use—simply insert and drive. It features a short anchoring zone (25mm for substrate categories A–D and 45mm for E), making installation quicker with less drilling. The pin, made from glass fibre-reinforced polyamide, includes a notched tip that compresses slightly in hard materials, reducing resistance and preventing breakage. Compatible with TDW pressure plates and suitable for surface.
Drill a hole directly perpendicular to the surface of the substrate and clear it out.
Create a countersink recess with a router/cutter for the assembly.
Position the connector in the hole, ensuring the anchor plate is level with the EWI/ETICS indented layer.
Install the connector pin by screwing it in.
Insert a thermo dowel cap.
Ensure the fixing is correctly positioned and sealed.

TECHNICAL DATA
Diameter of anchor: 10 mm
Diameter of washer / plate: 60 mm
Effective anchoring depth (hef): 40–50 mm
Plug material: High-quality polypropylene (PP) / polyamide
Nail material: plastic
Nail head / cap: Polyamide (PA) impact cap
Insulation thickness suitability: 70 mm insulation boards
Anchor length options: 100 mm – 120 mm
Installation type: Through-fix installation
Recommended substrates: Concrete, solid brick, hollow brick, lightweight concrete
Base material categories: A, B, C, D and E
Thermal bridge reduction: Polyamide cap covering the plastic nail head
Installation hole diameter: 8 mm
Temperature resistance: −40°C to +80°C
Pieces per box: 250 pcs
Application: Fixing EPS, XPS, mineral wool, PUR and cork insulation boards in ETICS façade insulation systems
CARACTÉRISTIQUES
Body in white and plastic nail with black cover to facilitate monitoring on site and ensure the correct installation of the anchor.
The plastic nail guarantees high resistance to impacts.
Geometry of the head specially designed to improve attachment of the plaster and other elements to be installed on the anchor.
Reinforcements on the interior side of the head to improve its rigidity and avoid it breaking.
Double expansion zone.
Expansion zone 50 mm long.
Indicator of depth of the anchor.
Reduction of thermal bridge thanks to the PA cap.
Marking of diameter and length on the body of the anchor.
Compatible with distribution washer AIS-R."
